Hexa-Flute (6 flutes)
6 flutes design with dense, textured luxury appeal.
The Hexa-Flute (6 flutes) features our tightest pitch, delivering a highly textured, dense visual experience with six beautifully detailed flutes. This profile maximizes light interplay, creating dramatic shadows that completely transform the perception of the surface.
Curated primarily for feature walls, it provides an intense, sensory-rich backdrop that serves as a stunning focal point in luxury interiors, hotel lobbies, and upscale retail environments.
Total Width / Effective Width
331 mm
Pitch
30 mm
Thickness
1.1 mm
Standard Length
3048 mm (10ft) & 3963mm (13ft)
WOOD GRAIN SELECTION
Available Finishes for Hexa-Flute
Explore our super matte soft touch wood finishes. Hover over any swatch for detailed view.
Natural Oak
Oak Wood
Golden Oak
Walnut
Imperial Walnut
Light Walnut
Royal Walnut
TECHNICAL ENGINEERING
CAD Profile & Effective Length
Detailed engineering cross-section and interlocking effective length specifications for Hexa-Flute. Click any diagram to view full screen.

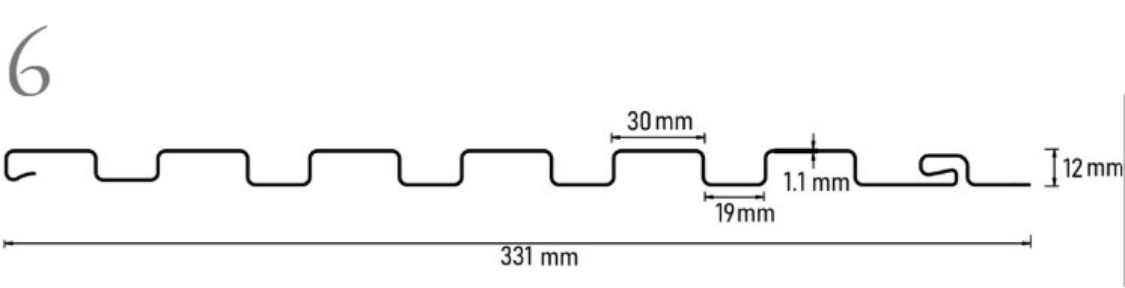

CAD Profile Cross-Section
Precision 1.1mm PVC composite extrusion with concealed side-punch locking tabs.
Effective Length & Interlocking Span
Effective installation width of 331 mm allowing seamless tongue-and-groove joint alignment.
How to Install
Follow our 4-step installation workflow for a seamless, professional architectural finish.
Frame J Trim
Fasten J trim on the ceiling or wall perimeter to frame the installation area securely.
