Trio-Flute (3 flutes)
3 flutes design with elegant minimal groove pattern.
The Trio-Flute (3 flutes) profile offers a refined, minimalist aesthetic with wider spacing between grooves. This creates a bold, formal rhythm that is highly suited for large scale installations, particularly ceilings and expansive feature walls.
Its subtle texture provides depth without overwhelming the space, making it a favourite for corporate interiors and contemporary luxury residences.
Total Width / Effective Width
300 mm
Pitch
80 mm
Thickness
1.1 mm
Standard Length
3048 mm (10ft) & 3963mm (13ft)
WOOD GRAIN SELECTION
Available Finishes for Trio-Flute
Explore our super matte soft touch wood finishes. Hover over any swatch for detailed view.
Natural Oak
Oak Wood
Golden Oak
Walnut
Imperial Walnut
Light Walnut
Royal Walnut
TECHNICAL ENGINEERING
CAD Profile & Effective Length
Detailed engineering cross-section and interlocking effective length specifications for Trio-Flute. Click any diagram to view full screen.

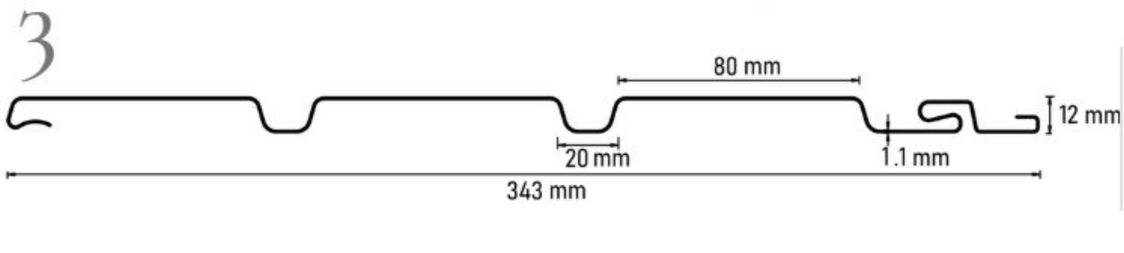

CAD Profile Cross-Section
Precision 1.1mm PVC composite extrusion with concealed side-punch locking tabs.

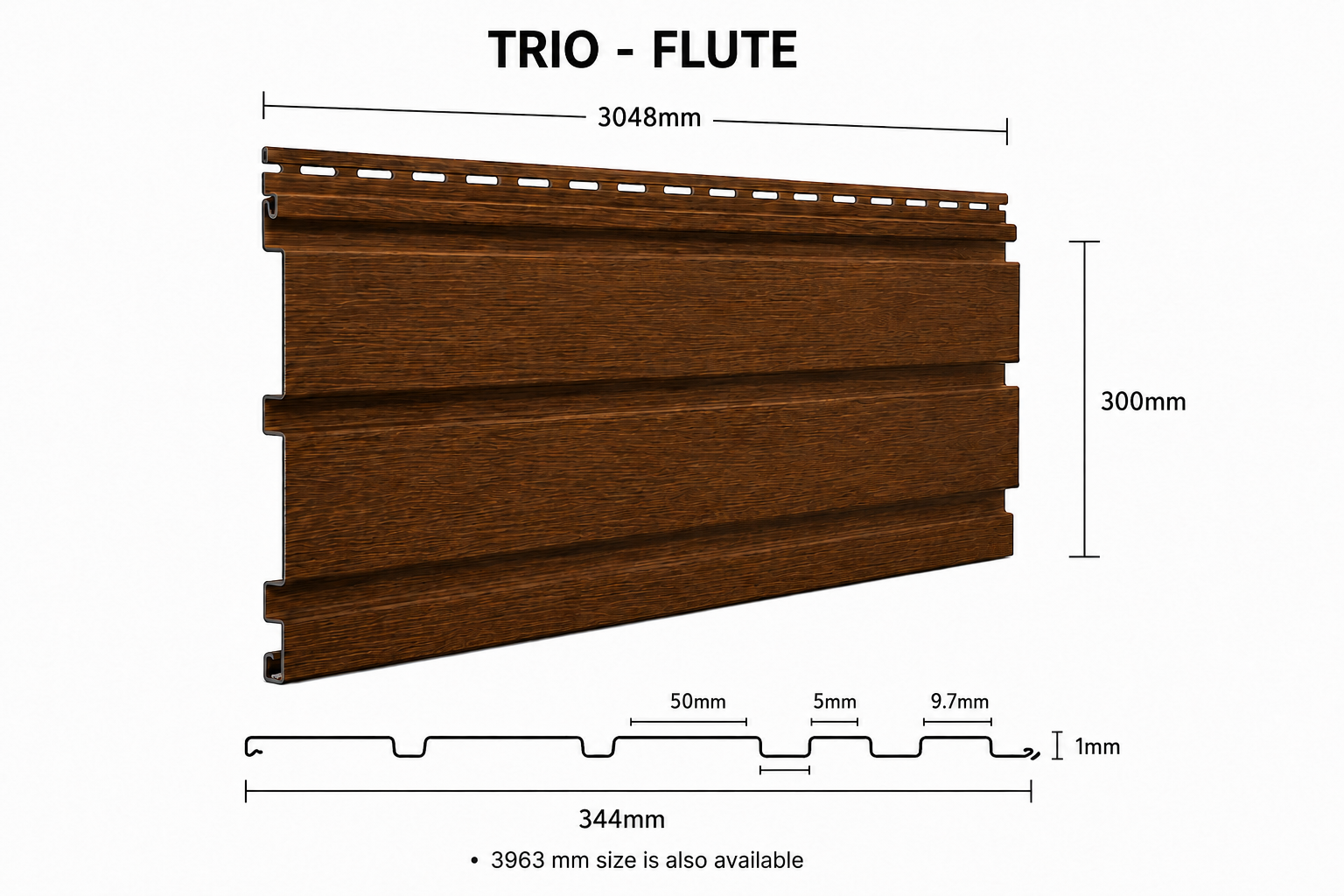

Effective Length & Interlocking Span
Effective installation width of 300 mm allowing seamless tongue-and-groove joint alignment.
How to Install
Follow our 4-step installation workflow for a seamless, professional architectural finish.
Frame J Trim
Fasten J trim on the ceiling or wall perimeter to frame the installation area securely.
